HOME  >  Products  >  Dynamo Parts

Dynamo Parts

is machinery parts to move and fix motors or generators

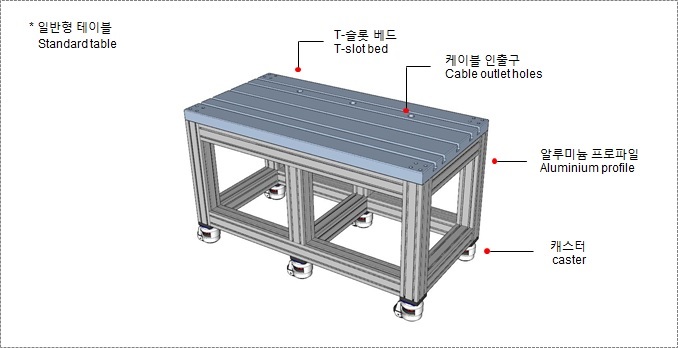

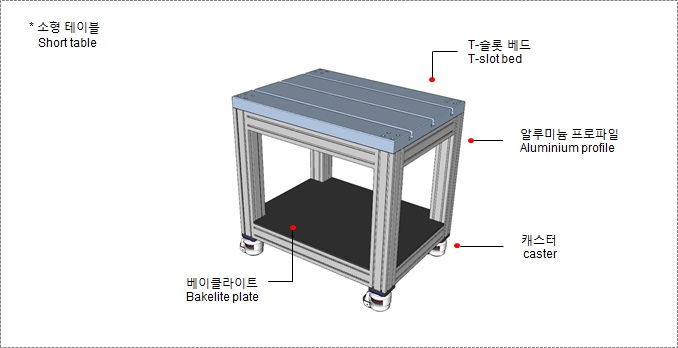

Dynamometer table

test_table

test_table

  • Chromated steel t-slot bed
  • Profile frame
  • Wheel caster

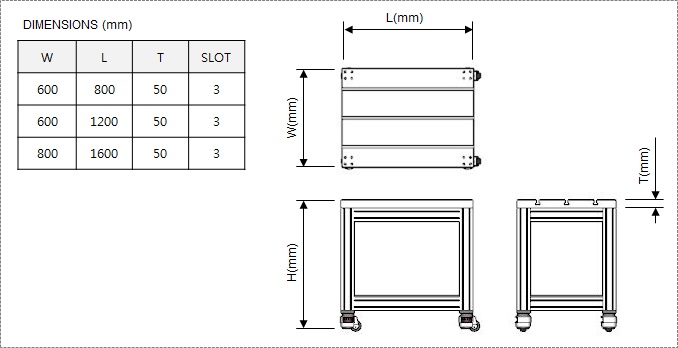

test_table_dimensions


  • Application

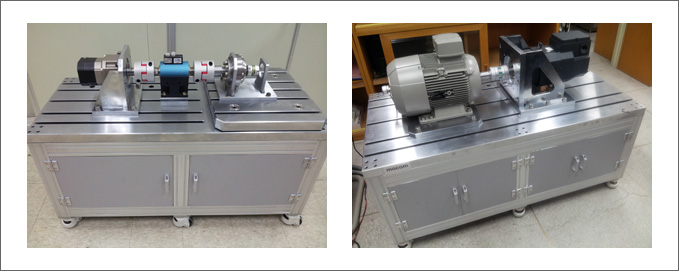

  • test_bench

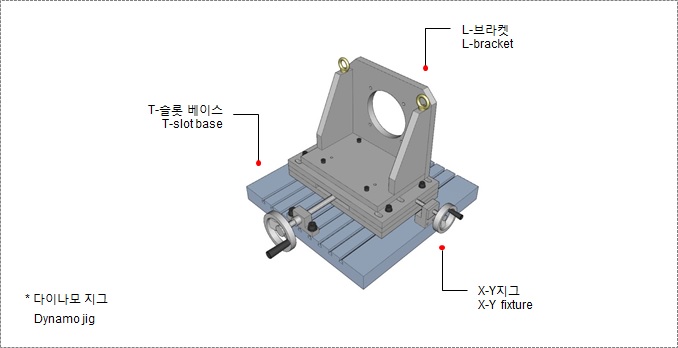

    Dynamometer jig

    test_jig

    • Horizontal type motor install : T-slot base
    • For/backward & left/right adjust : X-Y jig
    • Flange type motor install : L-bracket

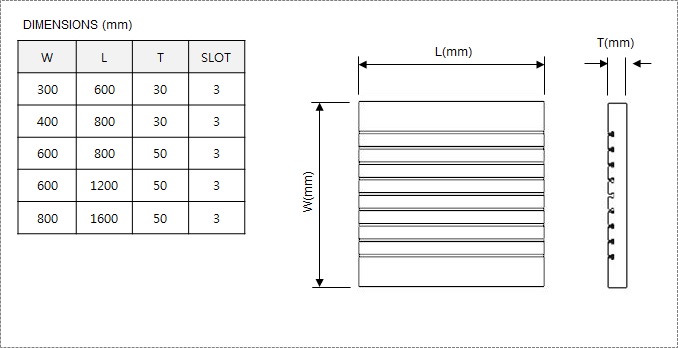

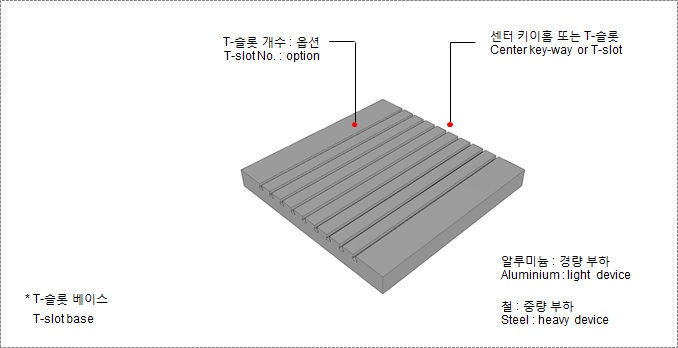

  • T-slot base
  • T-slot_base

    • Aluminium or steel plate
    • Aluminium : blelow 200W output, steel : over 400W output
    • Center slot or T-slot

    T-slot_base

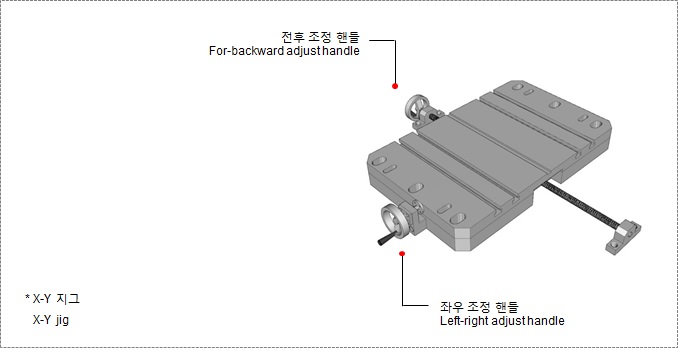

  • X-Y jig
  • table_jig

    • Horizontal type motor movement jig
    • For/backward adjust-coupling assembly, left/right adjust-shaft alignment

    table_jig

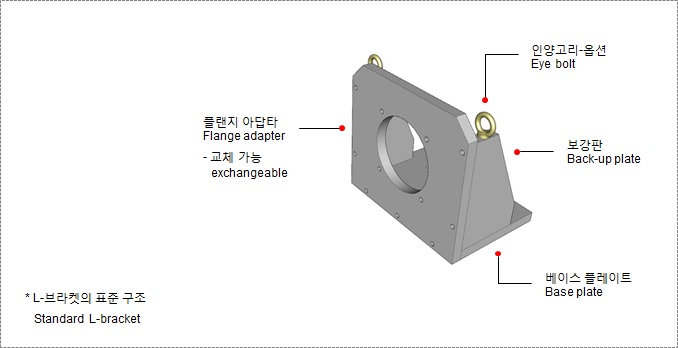

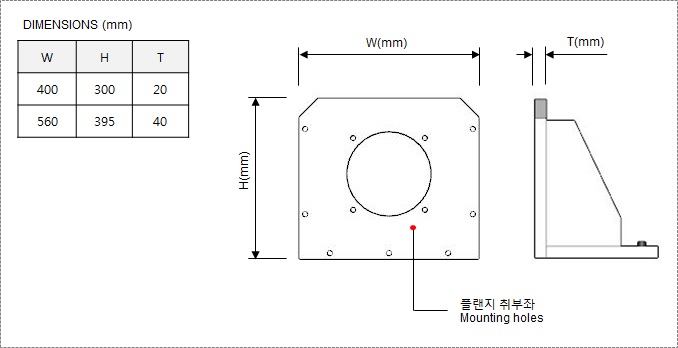

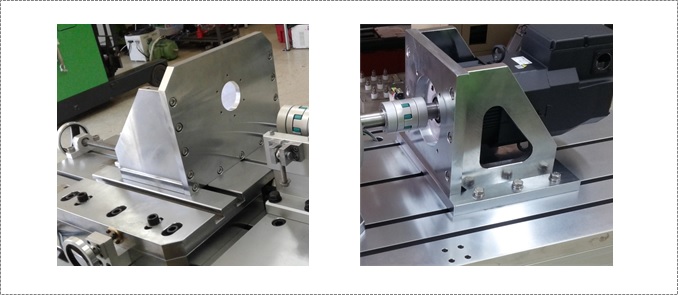

  • L-bracket
  • table_jig

    • Flange type motor, generator assembly jig
    • Aluminium : small-light application, steel : heavy weight application
    • Eyebolt-option, over 20kg weight

    table_jig


  • Applicaton
  • table_jig
