AC Dynamo

uses ac motor to creat a load

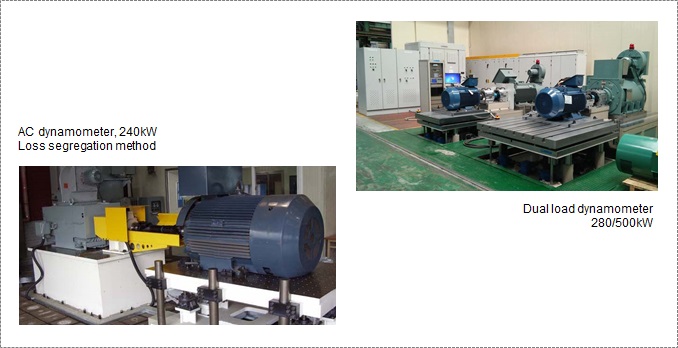

Eficiency determination test dynamometer

  • Motor efficiency test for induction motors (MEPS dynamo)
  • Loss segreation method for efficiency determination (IEC 60034-2-1)

motor_efficiency_test_dynamo


  • MEPS : Minimum Energy Performance Standard
  • Standard, limiting the maximum amount of energy that may be consumed by a product


  • Application

    • ac_dynamometer_application

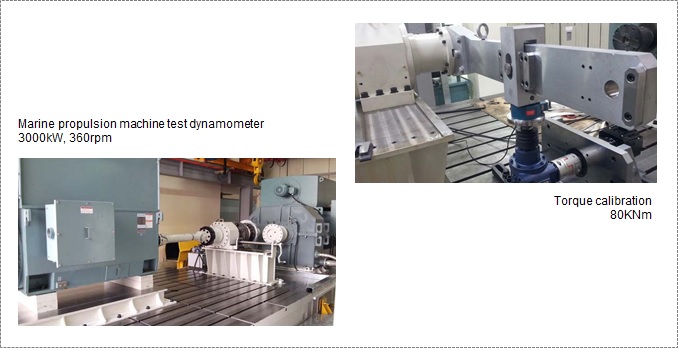

    High power dynamometer

    • Test for ship propulsion device and other high horse power machines (output 3MW, torque 80KNm)
    • Low speed / high torque using gear reducer

    high_power_dynamo


  • Application

    • ac_dynamometer_application

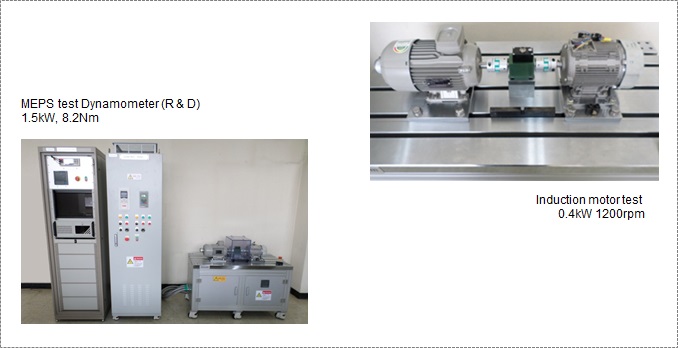

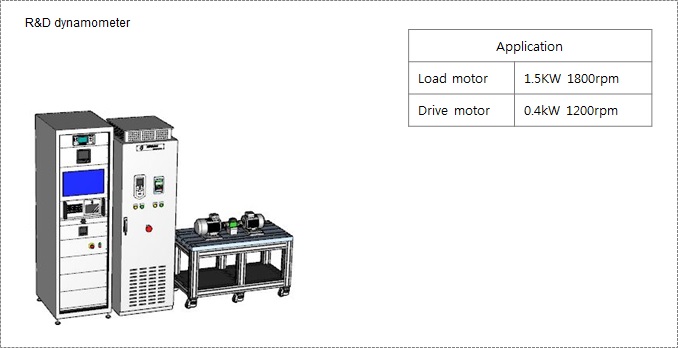

    R&D dynamometer

    • Simply designed & manufactured dynamometer
    • Research & development purpose

    research_&_development_dynamo


  • Application

    • ac_dynamometer_application

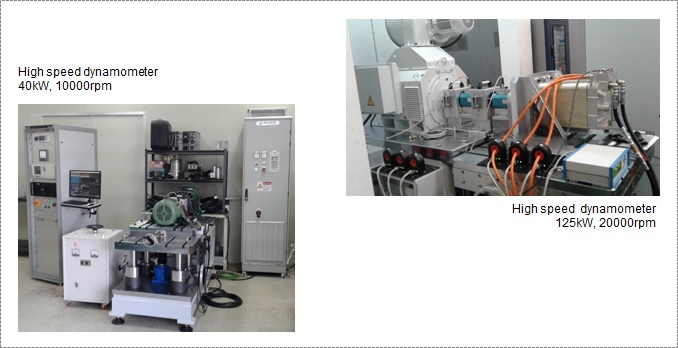

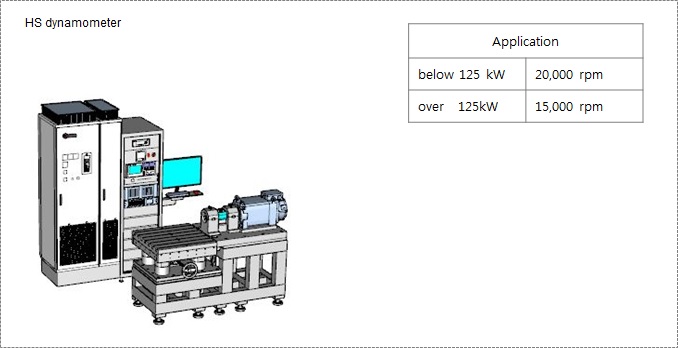

    High speed dynamometer

    • High speed rotationary machine test dynamometer
    • Electric vehicle motor and other machines

    high_speed_dynamo


  • Application

    • ac_dynamometer_application

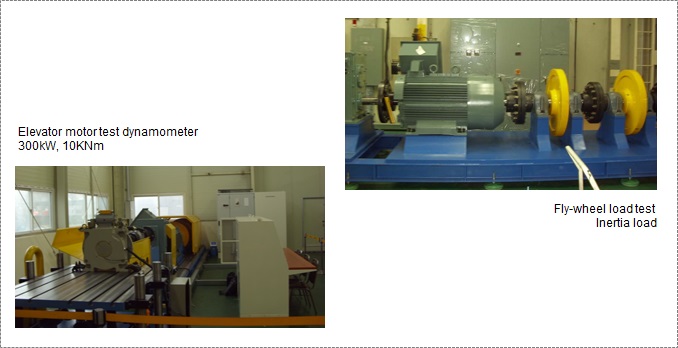

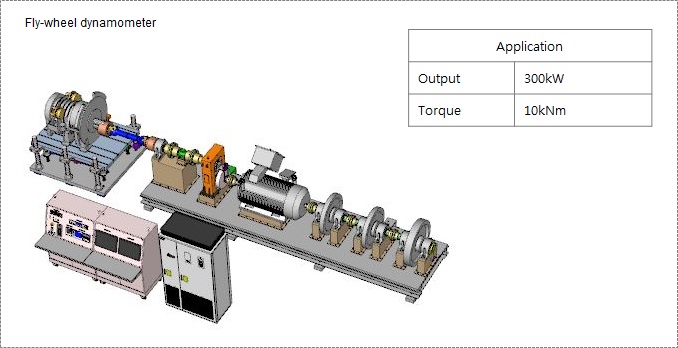

    Special dynamometer

    • Fly-wheel dynamometer (output 300kW, torque 10KNm)
    • Test dynamometer for inertia load of elevator and others

    fly_wheel_dynamo


  • Application

    • ac_dynamometer_application
