Dynamo Layout

Thank you for the visit. This is the reference page of mocom website.

Layout of AC Dynamometer

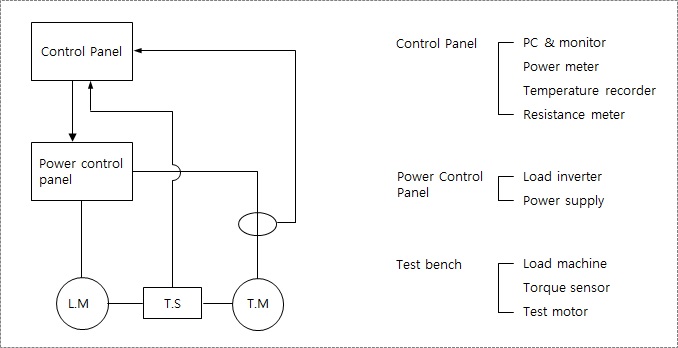

ac_dynamometer_layout

  • - Consists of load machine, power control unit and measurement panel
  • - Measurement panel : precision type & standard type
  • - Power supply controlled with the drving condition

Structure of AC Dynamometer

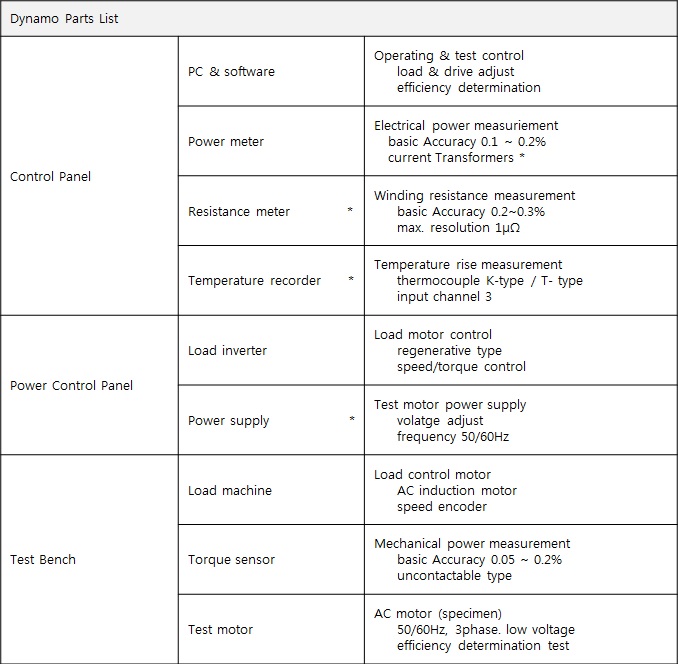

ac_dynamometer_structure

  • - AC dynamometer - application of load machine : induction motor with inverter
  • - Easy maintenance, energy saving with regeneration of load machine
  • - Dual dynamometer - dual load machines with one power suplly and control/measurement panel

Picture of dual dynamometer

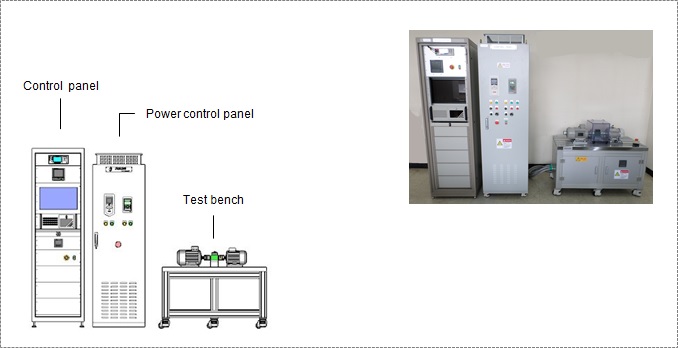

dual_type_ac_dynamometer

  • - Load machine output 280kw/500kW, Max. torque 5,000Nm, Max. speed 4,000RPM
